Mixed Dielectric Capacitors - MD Capacitors

Mixed - Dielectric Capacitors - MD Capacitors

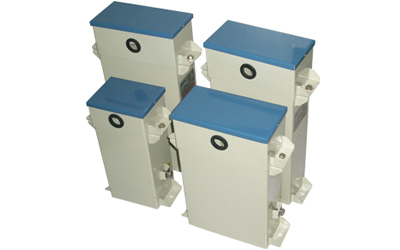

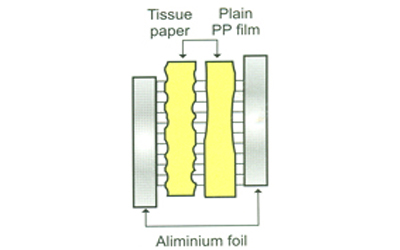

'SUDHAN' Mixed Dielectric Capacitors - MD Capacitors are manufactured using one layer of tissue paper and one layer of plain Polypropylene film as dielectric between two electrodes of thick soft annealed, 99.35% purity of Aluminium foil and have extended foil construction. Power leads are soldered to the extended portion to make a strong and positive electrical contact which can withstand Heavy inrush and discharge current. Capacitors are impregnated with NPCB, bio-degradable impregnant and are hermetically sealed. Three layers of Impregnating oil adds to dielectric strengthe, increase protection against failure and provides cooling effect.



TECHNICAL SPECIFICATION :
 TYPE
 Mixed - Di - Electric
 Standard Voltage Range
 415 / 440 / 480 / 525 / 600 VAC
 Other Voltage Range
 up to 1000 VAC
 Frequency
 50 HZ / 60 HZ
 Impregnant
 NPCB
 Insulation Level
 3 KV
 Dielectric Loss
 <1.0 watt / KVAr
 Capacitor Loss
 <2.0 watt / KVAr
 Connection
 3 Ph, Delta
 Life Expectancy
 2,00,000 Hrs
 Max. Permissible Over Voltage
 130% of Vn
 Max. Permissible Over Current
 130% of In


Upto 25 KVAR single unit & above 25KVAR banking will be provided.
